Are your smart solar spotlights turning off early or refusing to illuminate at dusk? If Aidot App v2.5.0 shows low battery, physical shade or incorrect panel tilt is restricting solar charging—adjust the panel to your local latitude ±5°. If battery levels are high but illumination fails, ambient light interference is suppressing the integrated photocell sensor.

Diagnostic Flowchart: Solar Undercharging vs. Ambient Light Interference

1. Does the spotlight turn on when manually toggled via Aidot App v2.5.0? → Yes: Go to Question 2 (Hardware/Battery functional).. No: Battery is depleted (0%) or unit is powered off. Charge under direct, unobstructed sun for 8 hours, then re-test manual toggle..

2. Is the reported Aidot App battery level above 70% at sunset? → Yes: Go to Question 4 (Ambient Light Sensor Suppression Path).. No: Go to Question 3 (Solar Panel Undercharging Path)..

3. Is the solar panel covered by moving branch shadows or tilted flatter than local latitude? → Yes: Undercharging confirmed: Prune overhead canopy 5-7 ft away and tilt panel to local latitude ±5°.. No: Inspect panel glass for dirt/sap build-up and verify power cable coupler is fully seated..

4. Is a streetlight, porch lamp, or neighboring floodlight in direct line-of-sight of the photocell? → Yes: Photocell blinding confirmed: Relocate fixture head or install optical shielding baffle.. No: Perform a 10-second hard power button reset to recalibrate dusk/dawn optical threshold in Aidot v2.5.0..

Follow this visual diagnostic decision tree to rapidly isolate whether your solar spotlight's failure stems from daytime energy capture issues or nighttime optical sensor suppression.

Side-by-Side Failure Mode Matrix

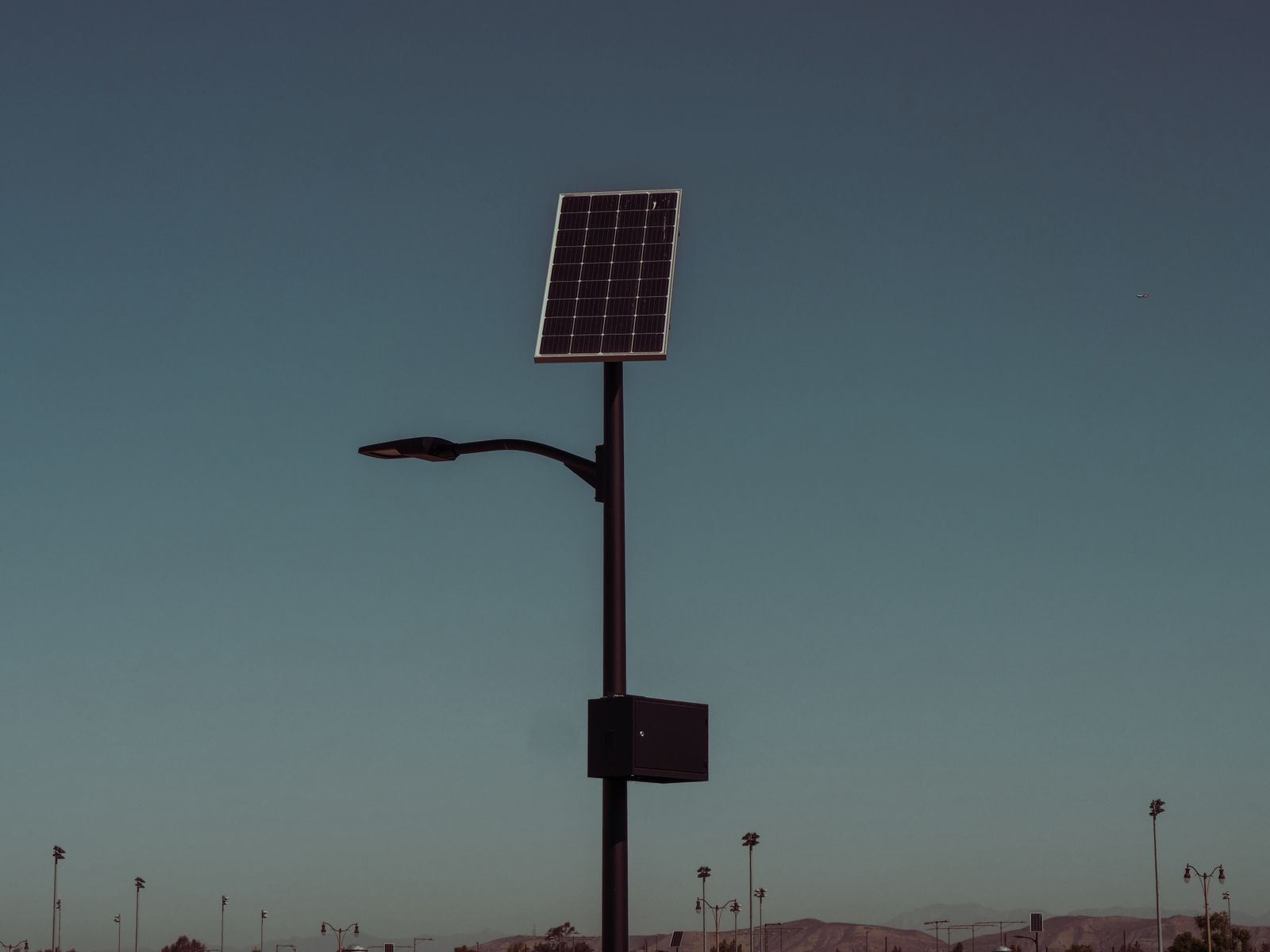

Street light with solar panel against a dusky sky, symbolizing renewable energy.
Photo by Kindel Media on Pexels

| --- | --- | --- | --- |

| Spotlight Shuts Off After 1–2 Hours of Operation | Micro-shadowing across PV cell string or flat tilt angle restricting solar conversion | Check Aidot App v2.5.0 battery status at dusk; reading will show <30% charge | Re-angle solar panel to local latitude ±5°; clear tree canopy and overhangs within 5–7 feet |

| Spotlight Remains Dark at Dusk Despite 100% Battery | Ambient artificial light interference blinding the integrated twilight photo-sensor | App telemetry shows full battery; fixture illuminates when manually turned on in app | Relocate fixture head outside direct streetlight beam path or shield sensor from ambient glare |

| Rapid On/Off Oscillating (Strobe Effect) at Twilight | Cross-fixture light pollution where lamp output reflects back into its own or nearby photocell | Observe light cycling on and off every 5–10 seconds as twilight transitions to darkness | Stagger pathway spotlights 5–7 feet apart; angle optical lamp heads downward away from sensors |

| Aidot App Telemetry Shows 0% Battery After Full Sunlight | Heavy surface contamination (pollen/dirt) or unseated waterproof power connection cable | Inspect solar panel surface for residue; disconnect and recheck physical DC plug terminal | Wipe panel glass clean with microfiber cloth; firmly seat and tighten waterproof cable coupler |

Identify your primary failure symptom below to determine root causes, telemetry diagnostics, and corrective field procedures.

Pro Calibration: Latitude Tilt Rules and Sensor Shielding

Solar photovoltaic efficiency drops exponentially when panels are incorrectly angled or exposed to partial shade. In the Northern Hemisphere, your baseline solar panel tilt angle must match your local geographic latitude within ±5°.

Southern US (e.g., Texas, Florida ~30°N): Set solar panel tilt to 30° from horizontal.
Northern US (e.g., Pacific Northwest, New England ~45°N): Set tilt to 45° from horizontal.

The Micro-Shadowing Effect: Standard solar spotlight modules connect photovoltaic cells in series. A shadow covering as little as 10% of the panel surface can reduce total power generation by up to 80%. Never place panels beneath thin tree branches, pergola slats, or roof eaves—even dappled light severely disrupts full charging.

Pre-Diagnostic Hardware & App Verification Checklist

Solar panel glass wiped clean of dust, tree sap, pollen, and water mineral spots.

Solar panel tilt angle verified against local US geographic latitude within ±5°.

Spotlight panel and fixture placed 5 to 7 feet away from tall wall obstacles, overhangs, or dense canopy.

Aidot App updated to version 2.5.0 for accurate battery status and sensor calibration.

Dusk battery charge percentage verified via Aidot app telemetry (>70% required for full-night runtime).

Nearest streetlight, porch light, or security floodlight positioned outside the photocell's direct optical line-of-sight.

Pathway lights arranged in a staggered layout (5–7 ft apart) to eliminate cross-fixture photocell blinding.

Run through this physical and digital verification protocol before relocating mounting stakes or altering landscape wiring.

Decision Tree: Selecting the Correct Solution Path

Is the spotlight installed beneath a tree canopy, roof eave, or wall shadow? → Yes: Action Path A: Physical Relocation & Tilt Adjustment. Move unit to an open area with 6+ hours of unobstructed sun and set tilt angle to local latitude ±5°.. No: Go to Next Question.

Does a nearby streetlight or porch lamp turn on before your solar spotlight? → Yes: Action Path B: Ambient Photocell Shielding. Rotate sensor away from artificial light source or apply a physical optical shield.. No: Go to Next Question.

Are multiple path spotlights installed in a straight line directly facing one another? → Yes: Action Path C: Staggered Pathway Re-alignment. Re-position spotlights 5 to 7 feet apart on alternating sides of the walkway.. No: Action Path D: Firmware & Hardware Reset. Update Aidot App to v2.5.0 and execute a 10-second button press hard reset.

Determine your immediate corrective action based on environmental surroundings and app telemetries.

Immediate Action Plan & System Maintenance

Your decision: Determine whether your smart solar spotlight requires panel relocation (undercharging due to shade) or sensor shielding/app adjustment (artificial light interference).

Do this next: Open Aidot App v2.5.0 to check battery percentage at dusk. If battery is <30%, clear canopy overhead and adjust panel tilt to local latitude ±5°. If battery is >80% but light stays off, relocate fixture away from streetlights.

Related resource: https://smartsolarspotlight.com

Linkind SL5C Smart Solar Spotlight

Follow these steps to restore reliable dusk-to-dawn operation to your outdoor smart lighting setup.

Key Takeaways for Solar Spotlight Optimization

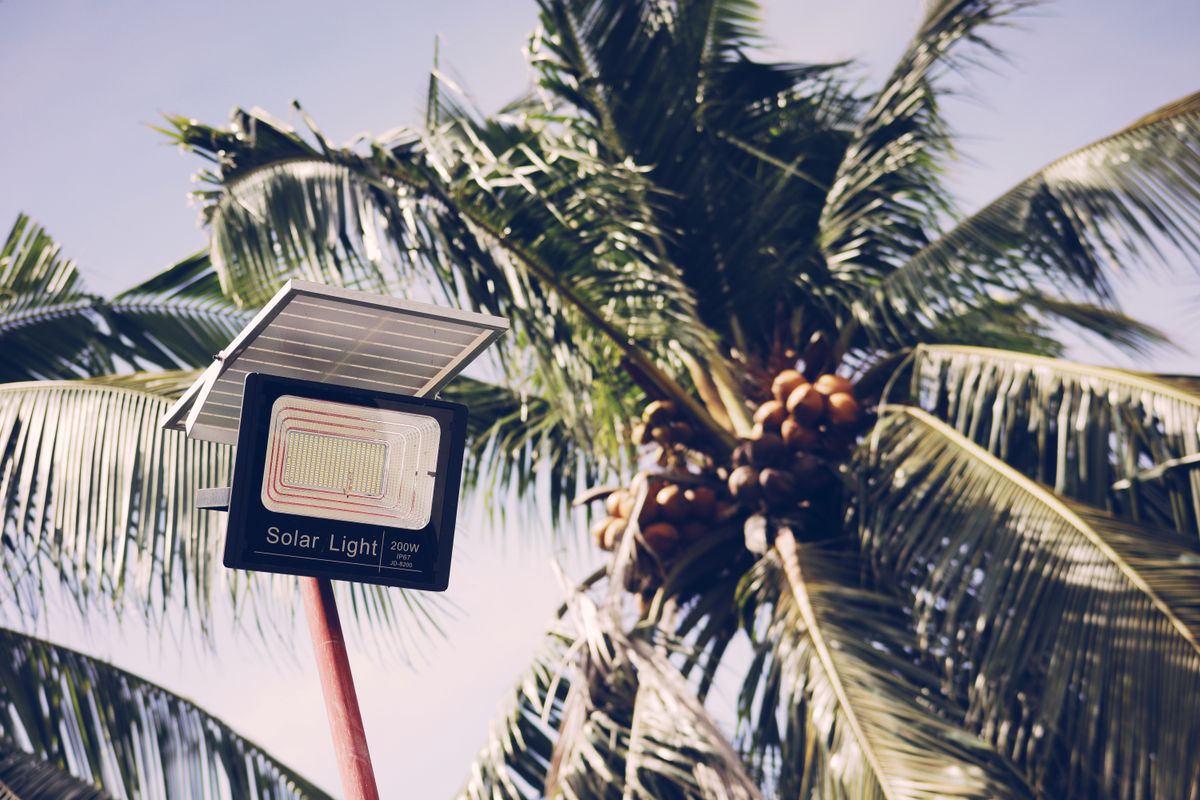

From below of solar light streetlamp with inscription near tall tropical palm tree with green leaves on sunny summer day
Photo by Nothing Ahead on Pexels

Step-by-Step Fix: Resolving Micro-Shadowing and Photocell Blindness

Step 1: Verify Battery Telemetry via Aidot App v2.5.0

Open the Aidot app (version 2.5.0 or later) near the spotlight. Check the real-time battery status percentage at dusk. A reading below 30% indicates severe daytime solar undercharging. A reading above 80% confirms the battery is healthy, pointing directly to artificial light sensor suppression.

Step 2: Eliminate Micro-Shadowing & Clear Canopy

Inspect the solar panel during peak daylight hours (10:00 AM – 2:00 PM). Look for subtle shadows cast by leaf clusters, power lines, or gutter overhangs. Prune branches and shift fixture placement to maintain a minimum 5 to 7 foot clearance from tall objects.

Step 3: Set Baseline Solar Tilt to Local US Latitude

Loosen the solar panel adjustment knob. Using a smartphone incline tool or protractor, adjust the panel tilt angle to match your local state latitude within a ±5° tolerance (e.g., 32° in Atlanta, GA; 42° in Chicago, IL). Point the panel directly South in the Northern Hemisphere, then lock the knob tightly.

Step 4: Isolate Photocell from Streetlights & Stagger Path Fixtures

If nearby streetlights or porch fixtures cast light across the spotlight's photocell, swivel the fixture housing so the optical sensor faces away from the glare source. When lighting pathways, install units using a staggered zig-zag arrangement spaced 5 to 7 feet apart to prevent light from one fixture blinding the photocell of the next.

Step 5: Perform App Calibration and Hard Reset

If the light remains unresponsive despite clean charging conditions, hold the physical power button on the fixture for 10 seconds while connected to Aidot App v2.5.0. This initiates a hard reset, clearing legacy sensor thresholds and restoring factory dusk-to-dawn optical calibration.

Top 4 Solar Spotlight Charging & Placement Blunders

Avoid these common setup errors that compromise battery charging and cause dusk-to-dawn lighting failures:

Frequently Asked Questions

Final Action Plan: Restore Optimal Smart Lighting Performance

Your decision: Identify whether your unit is undercharged due to physical placement or suppressed by artificial light sources.

Do this next: Check Aidot App v2.5.0 for battery status. Adjust panel tilt to local latitude ±5°, ensure a 5-7 ft clearance from structures, and position photocells away from streetlights.
